Cost Considerations and Trade-offs

When using availability zones in Azure, it's important to consider the cost implications alongside the benefits of increased availability. While availability zones provide enhanced resilience by distributing resources across separate datacenters within a region, this comes with potential cost trade-offs. Deploying resources across multiple zones can increase costs compared to a single-zone deployment, as you are essentially paying for additional infrastructure to achieve higher availability.

One key consideration is the type of service being used. Zonal resources, which are pinned to a specific availability zone, require you to manage data replication and request distribution across zones. This means you are responsible for setting up and maintaining the infrastructure for failover, which can add to the overall cost. In contrast, zone-redundant resources are spread across multiple zones by Microsoft, which manages the replication and failover process. While this simplifies management, it may come at a higher cost due to the added service provided by Microsoft.

Another factor is the level of redundancy required for your application. For mission-critical workloads, a multi-region and multi-zone solution may be necessary, which will significantly increase costs. However, for less critical applications, a single-region, multi-zone deployment may be sufficient, offering a balance between cost and availability. It's crucial to evaluate the specific needs of each application and choose the appropriate level of redundancy to optimize costs.

Furthermore, the choice of storage redundancy also impacts costs. Options like Locally Redundant Storage (LRS) replicate data within a single region, while Zone Redundant Storage (ZRS) replicates data across multiple zones within a region. ZRS provides higher availability but at a higher cost than LRS. Similarly, Geo-Redundant Storage (GRS) replicates data to a secondary region, offering the highest level of protection but also the highest cost. Selecting the right storage redundancy option is essential to balance cost and data protection requirements.

In summary, using availability zones in Azure involves a trade-off between cost and availability. While they provide enhanced resilience and protection against datacenter failures, they also increase costs due to the need for additional infrastructure and management. Careful planning and evaluation of application requirements are essential to optimize costs while achieving the desired level of availability.

Purpose and Benefits of Availability Zones

Availability Zones are physically separate datacenters within an Azure region, designed to provide high availability and fault tolerance for your applications and data. These zones are close enough to each other to have low-latency connections, typically less than 2ms round-trip, but far enough apart to minimize the impact of local outages or weather events. Each zone has its own independent power, cooling, and networking infrastructure, ensuring that a failure in one zone does not affect the others.

The primary purpose of Availability Zones is to enhance the resilience of your applications. By deploying resources across multiple zones, you can protect your applications and data from datacenter failures. If one zone experiences an outage, your application can continue to run in the remaining zones, ensuring minimal disruption. This is crucial for maintaining business continuity and meeting service level agreements (SLAs).

There are two main ways Azure services utilize Availability Zones: zonal resources and zone-redundant resources. Zonal resources are pinned to a specific zone, requiring you to manage data replication and failover. Zone-redundant resources, on the other hand, are spread across multiple zones, with Microsoft managing the replication and failover process. This flexibility allows you to choose the approach that best fits your application's needs and requirements.

Using Availability Zones offers several key benefits. They provide improved uptime by ensuring that your application remains available even if one zone fails. They also offer fault isolation, meaning that a failure in one zone does not cascade to other zones. Additionally, they enhance disaster recovery capabilities by allowing you to quickly recover from a zone failure by using resources in another zone. These benefits contribute to the overall resilience and reliability of your applications and services.

To fully leverage the benefits of Availability Zones, it is recommended to deploy your production workloads across multiple zones within a region. For mission-critical workloads, consider a multi-region and multi-zone solution to maximize availability and minimize the impact of potential outages. By using Availability Zones effectively, you can build more robust and resilient applications that can withstand various types of failures.

Understanding Availability Zones

Availability Zones are physically separate datacenters within an Azure region. They are designed to provide high availability and fault tolerance for your applications and data. These zones are close enough to each other to have low-latency connections, typically less than 2ms round-trip, but far enough apart to reduce the risk of simultaneous outages due to local issues or weather events. Each zone has its own independent power, cooling, and networking infrastructure.

When deploying resources in an Azure region with availability zones, you can choose to use multiple zones to keep separate copies of your application and data in different physical datacenters. This approach helps ensure that your services remain available even if one zone experiences an outage. There are two main ways Azure services use availability zones: zonal resources and zone-redundant resources.

Zonal resources are tied to a specific availability zone, and you are responsible for managing data replication and distributing requests across zones. If a zone fails, you must manually failover to another zone. Zone-redundant resources, on the other hand, are spread across multiple availability zones, with Microsoft managing the data replication and failover process automatically. Platform as a service (PaaS) services often support zone-redundant deployments, while infrastructure as a service (IaaS) services typically support zonal deployments.

Each physical datacenter is assigned to a physical zone, which is then mapped to a logical zone in your Azure subscription. This mapping can vary between subscriptions, meaning that logical zone 1 in one subscription might correspond to a different physical zone than logical zone 1 in another subscription. You can use the Azure Resource Manager API to understand the mapping between logical and physical zones for your subscription.

Microsoft deploys updates to Azure services one availability zone at a time. This approach minimizes the impact of updates on your workloads, as they can continue running in other zones while an update is being applied to one zone. To take advantage of this benefit, you need to run your workload across multiple zones. Using availability zones is a key strategy for achieving high availability and disaster recovery in Azure.

Service Availability and Redundancy

Availability zones are physically separate datacenters within an Azure region, designed to provide high availability and fault tolerance. These zones are close enough to each other to have low-latency connections, typically less than 2ms round-trip, but far enough apart to minimize the impact of local outages or weather events. Each zone has independent power, cooling, and networking infrastructure, ensuring that if one zone fails, the others can continue to operate. This setup helps keep data synchronized and accessible during disruptions.

When deploying resources in an Azure region with availability zones, you can choose between zonal and zone-redundant services. Zonal resources are tied to a specific availability zone, giving you control over where your resources are located. You are responsible for managing data replication and distributing requests across zones. If a zone fails, you must manually failover to another zone. Zone-redundant resources, on the other hand, are automatically spread across multiple availability zones by Microsoft. This includes data replication and request distribution, and Microsoft manages failover in case of an outage.

Azure services support either zonal, zone-redundant, or both approaches. Infrastructure as a service (IaaS) services typically support zonal deployments, while Platform as a service (PaaS) services often support zone-redundant deployments. The choice between these options depends on your specific needs for control, reliability, and management overhead. Using multiple availability zones helps you keep separate copies of your application and data within different physical datacenters in a large metropolitan area.

Each physical datacenter is assigned to a physical zone, which is then mapped to a logical zone in your Azure subscription. This mapping can vary between subscriptions, meaning that logical zone 1 in one subscription might correspond to a different physical zone than logical zone 1 in another subscription. This is important to understand when designing multi-subscription solutions. You can use the Azure Resource Manager API to determine the mapping between logical and physical zones for your subscription.

Microsoft deploys updates to Azure services one availability zone at a time to minimize the impact on running workloads. By running your workload across multiple zones, you can take advantage of this benefit, ensuring that your application remains available during updates. Many Azure regions also have a paired region, which supports multi-region deployment strategies. However, some newer regions with multiple availability zones do not have a paired region, requiring different approaches for multi-region solutions.

In summary, availability zones are a key component of Azure's high availability and disaster recovery strategy. By understanding the differences between zonal and zone-redundant services, and how they are mapped to physical datacenters, you can design resilient applications that can withstand various types of failures. Utilizing multiple availability zones is crucial for achieving the highest possible SLA connectivity percentage for your Azure resources.

Deployment Strategies Using Availability Zones

Availability Zones are physically separate datacenters within an Azure region, designed to provide high availability and fault tolerance. These zones are close enough to each other to have low-latency connections, typically less than 2ms round-trip, but far enough apart to minimize the impact of localized outages. Each zone has independent power, cooling, and networking infrastructure, ensuring that a failure in one zone does not affect the others. This separation is crucial for maintaining application availability during disruptions.

When deploying resources in an Azure region with availability zones, you can choose between zonal and zone-redundant services. Zonal resources are tied to a specific availability zone, giving you control over where your resources are located. To achieve high reliability with zonal resources, you must manually manage data replication and distribute requests across different zones. If a zone fails, you are responsible for initiating failover to another zone. Zone-redundant resources, on the other hand, are automatically spread across multiple availability zones by Microsoft. This means Microsoft handles data replication and failover, simplifying the process of maintaining high availability.

To maximize the benefits of availability zones, it is important to deploy your applications across multiple zones. For critical applications, consider a multi-zone deployment where you have separate copies of your application and data in different physical datacenters within the same region. This approach ensures that if one zone experiences an outage, your application remains accessible from the other zones. This strategy is essential for maintaining business continuity and minimizing downtime.

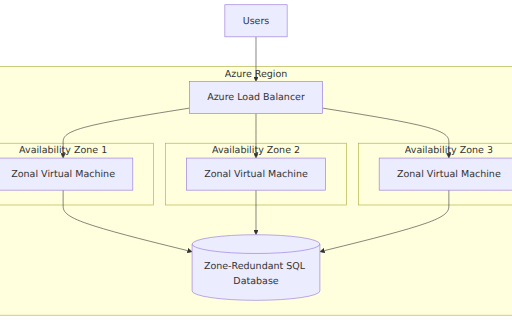

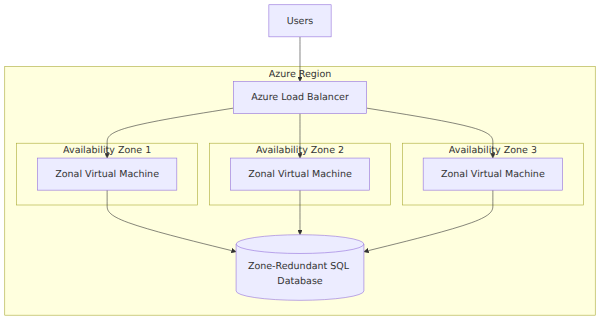

Azure services support both zonal and zone-redundant deployments. Infrastructure as a service (IaaS) services typically support zonal deployments, while platform as a service (PaaS) services often support zone-redundant deployments. When designing your architecture, you can combine these approaches to create a robust and resilient solution. For example, you might use zonal virtual machines for compute and zone-redundant storage for data. Understanding the different types of services and how they interact with availability zones is key to building a highly available application.

In addition to availability zones, Azure also offers paired regions, which are geographically distant regions that are paired together. These pairs allow for the replication of resources across a wider area, providing protection against large-scale disasters. While some newer regions have multiple availability zones but no paired region, you can still deploy multi-region solutions, but the approach may differ. Using both availability zones and paired regions can provide a comprehensive disaster recovery strategy.

Finally, it's important to understand the shared responsibility model when using availability zones. While Microsoft provides the infrastructure and manages zone-redundant services, you are responsible for managing zonal resources and ensuring your application is designed to take advantage of the high availability features. This includes managing data replication, distributing requests, and implementing failover mechanisms. By understanding your responsibilities and leveraging the available tools and services, you can build highly resilient and available applications in Azure.

Conclusion

In summary, availability zones are a crucial component of Azure's infrastructure, designed to enhance the resilience and availability of applications and services. They provide physically separate datacenters within an Azure region, each with independent power, cooling, and networking. Understanding the trade-offs between cost and availability, the purpose and benefits of availability zones, and the different deployment strategies is essential for building robust and reliable solutions. By leveraging both zonal and zone-redundant services, and by deploying across multiple zones, you can minimize the impact of outages and ensure business continuity. Additionally, understanding the shared responsibility model is key to effectively managing and maintaining highly available applications in Azure.
